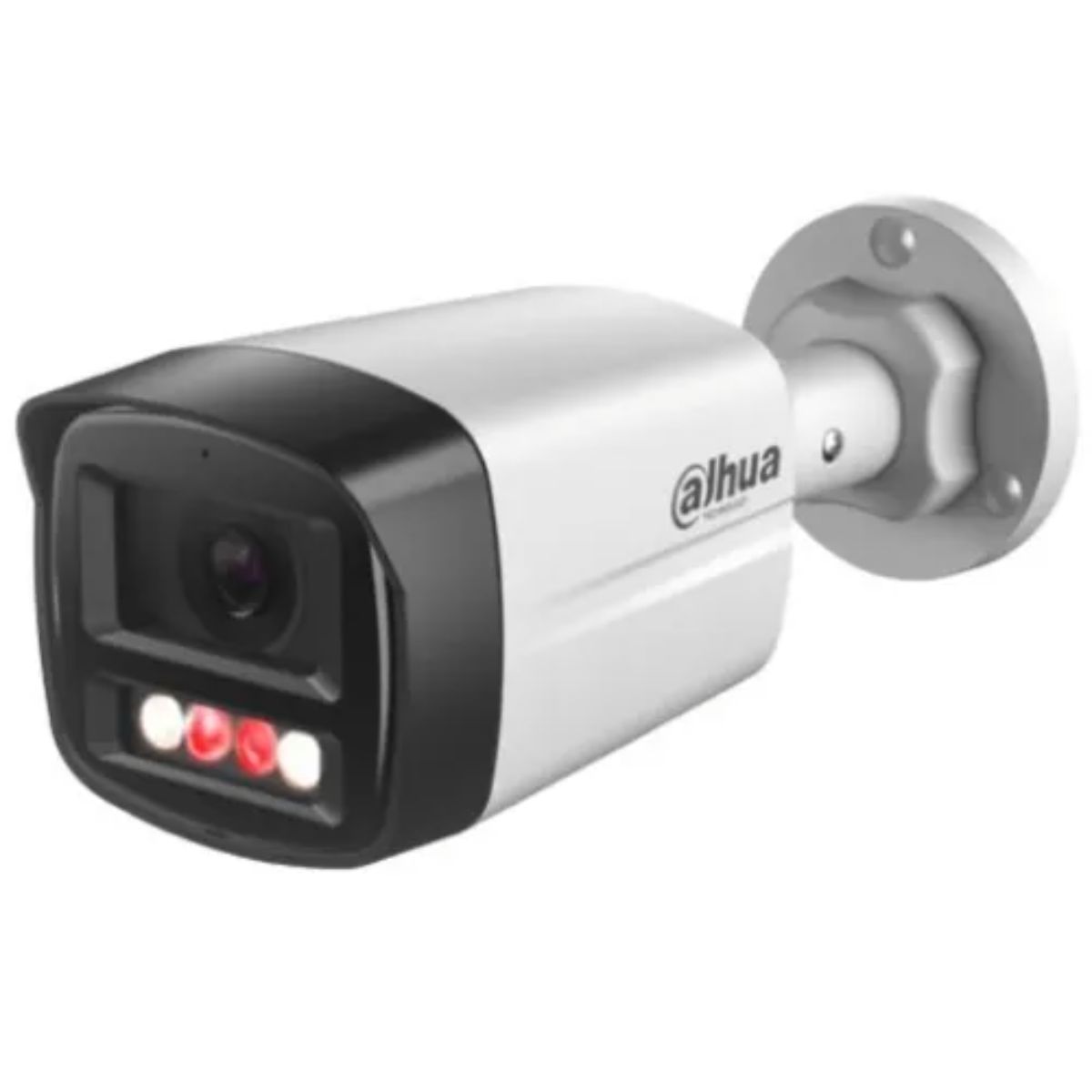

DH-IPC-HFW1439TL1-A-IL 4MP Smart Dual Light Bullet IP Camera

Code: P90056

Brand: Dahuya

Price: 4500TK 4100TK

Type

Quantity

Messenger

Phone Call

Product Description:

5MP Full-color HDCVI Fixed-focal Bullet Camera

> * The parameters and datasheets below can only be applied to 1509-S3 series.

> *In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

> Max 25 fps@5MP (16:9 video output)

> Super Adapt, 120 dB true WDR, 3D NR

> 24/7 color imaging

> Smart Light+

> Smart Area Lighting

> Built-in Mic

> 40 m illumination distance

> CVI/CVBS/AHD/TVI switchable

> 3.6 mm fixed lens (2.8 mm optional)

> IP67, 12 VDC

Specifications
Accessories
Download
More Information

Product Selector

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s;
NTSC: 1/4 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

40 m (131 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Auto Focus

Lens Mount

M12

Focal Length

3.6 mm; 2.8 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 112°; V: 57°; D: 132°
3.6 mm: H: 88°; V: 46°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2 m (6.56 ft)
3.6 mm: 2.3 m (7.55 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	67.4 m ( 221.13 ft)	27.0 m ( 88.58 ft)	13.5 m ( 44.29 ft)	6.7 m ( 21.98 ft)
3.6 mm	80.0 m ( 262.47 ft)	32.0 m ( 104.99 ft)	16.0 m ( 52.49 ft)	8.0 m ( 26.25 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps; 4M@25 fps
NTSC: 5M 16:9@20 fps; 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR; HLC-Pro

WDR
